Automotive rear kick switch ATF102K
ATF102K is a microwave sensor used for the open or close control of car trunk. It is to detect the action of the human foot through a microwave sensor module in automotive rear. Then, it is to realize the open or close control of car trunk according to the level signal corresponding to the detection result.
Category:
Key Word:
Product Details

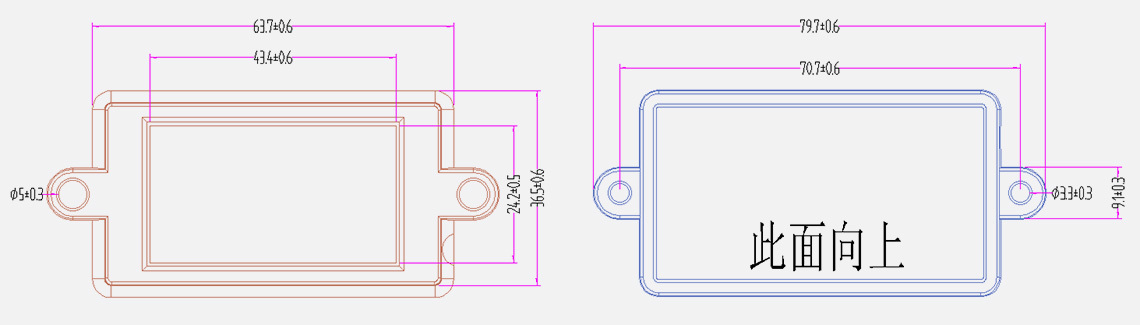

Dimensions
Unit: mm
Product Features
ATF102K is a microwave sensor used for the open or close control of car trunk. It is to detect the action of the human foot through a microwave sensor module in automotive rear. Then, it is to realize the open or close control of car trunk according to the level signal corresponding to the detection result.
Electrical Parameters
|
Power supply voltage |
DC 9~ 12V |
Motor response time |
Intermittent |
|
Operating current |
About 5 mA |
Start-up time |
About 2 s |
|
Emission frequency |
24.125±0.25 GHz |
Temperature range |
-20 ~ +60 ℃ |
|
Detection distance |
About 30 cm |
IP protection class |
IP68 |
Installation location diagram
The red dotted box in the figure is the sensor position.
